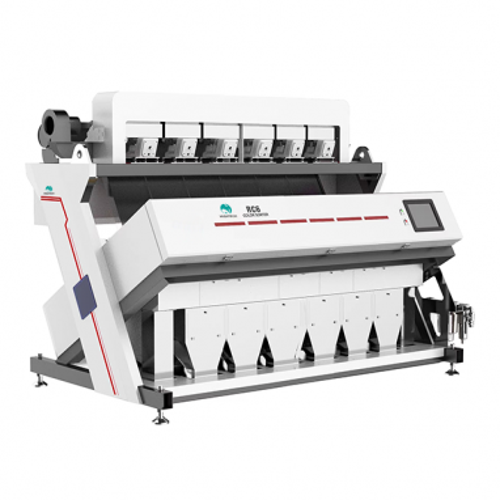

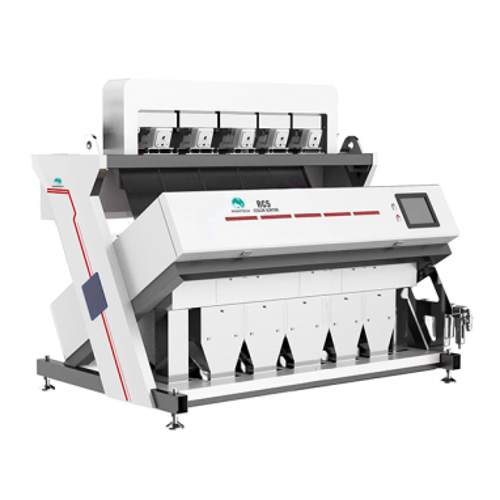

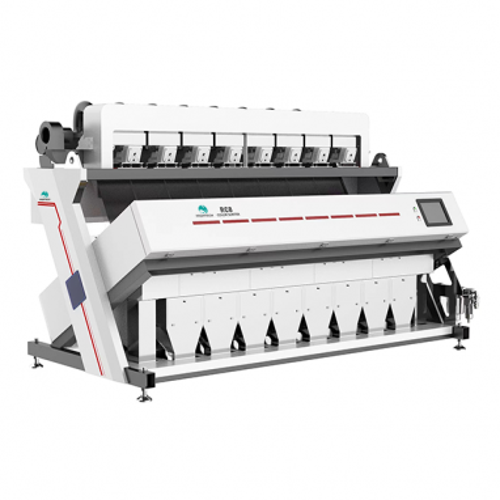

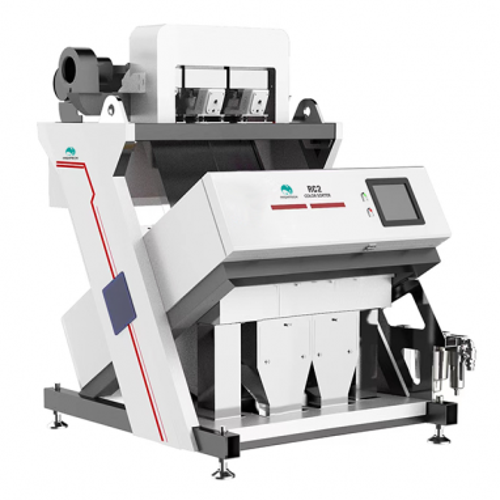

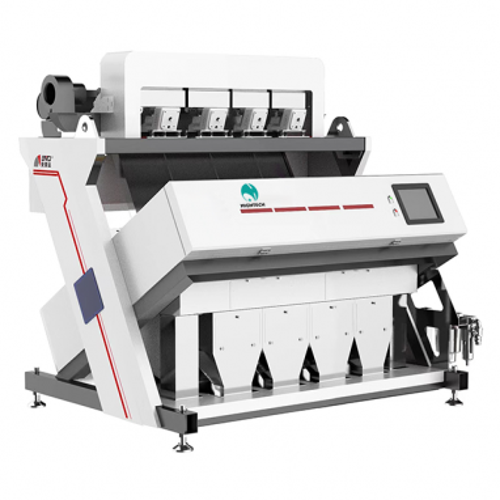

Plastic sorting machine / Color sorter machine / Plastic sorting machine price
Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time：
Within 7-20 daysProduct Name:
Plastic color sorterWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:
CE1. The selected materials like the plastic enter the machine from the hopper at the top.With the vibration of the vibrator device,the selected materials are conveyed along the channels,enter the observation area of the sorting room, and passe between the sensor and the background plate.
2. Under the affect of the light,the system generates an output signal to drive the solenoid valve to blow out the different-colored particles to the waste hopper with the intensity of the light and the color change.And the good materials continue to fall into the finished hopper .
Recycling plastic sorting Application:
Such as Waste Plastics, Plastic pellet, HDPE/LDPE bottle falkes,Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic
flake, PP plastic scrap,PS plastic scrp,PE , Recycled plastic, others.
Plastic color sorter can separate mixed plastic by different colors ,you can get 99.9% pure single color plastic at last .
| Model |
MPCS3 |
MPCS5 |
MPCS7 |
|
Capacity(t/h) |
1-1.5 |
1.5-2.5 |
2.5-4 |
|
Number of Execution Units |
180 |
300 |
420 |
|
Size of Sorting(mm) |
2*2-30*30 |
2*2-30*30 |
2*2-30*30 |
|
Power(kw) |
1.8 |
2.4 |
3.5 |
|
Dimensions(L*W*H)(mm) |
1455*1597*2142 |
2075*1597*2142 |
2625*1597*2142 |
|
Weight(kg) |
940 |
1330 |
1650 |

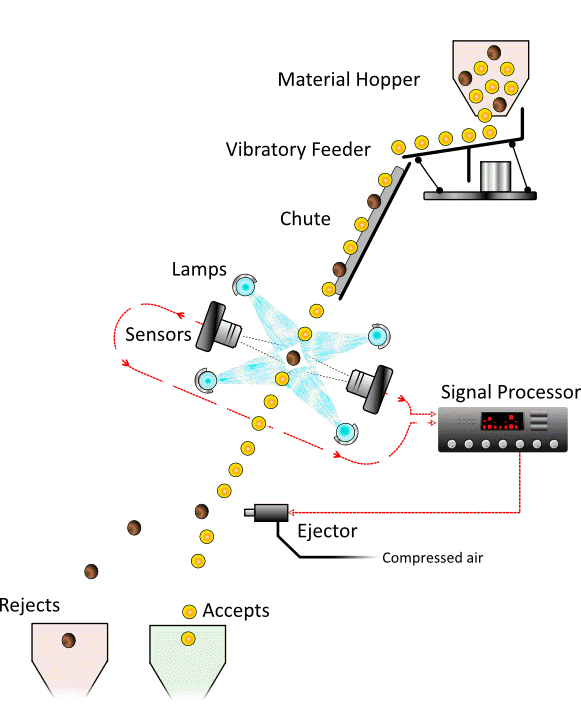

Plastic materials goes through hopper into the machine, shaken by the vibration device, the material slides through distributing box, an then pass through detector and background board.
Under the light resource, the light sensor receives compound light from the material, and the system sends out signals, driving the movement of the ejection valve, and remove off color material to the eject chamber. Accepted material freely falls down to the finished-product chamber, so that the material is precisely sorted.
* Separate various colors;
* Efficiently sort needed material from rejected one;
* Adopts latest software, highly precise sorting, with low product loss;
* Strengthened spout and air jet design for high per-cent contaminated material, durable and dependent;

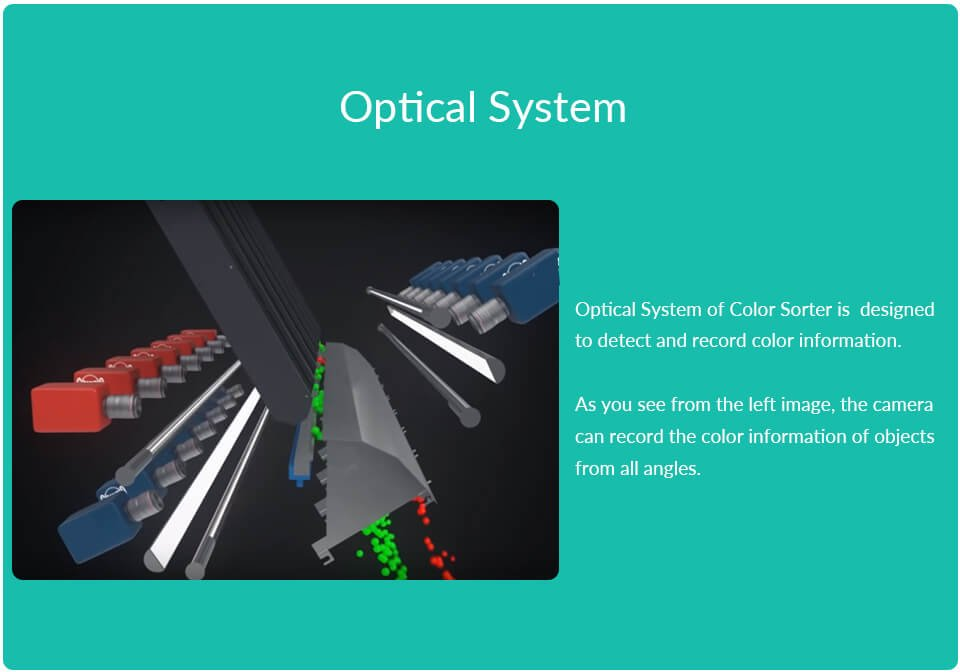

* Adopts high-resolution image sensor, equipped with high-speed automatic identifying and analysing system;
* New type touch-screen operation platform, big colorful screen and user-friendly operation interface, can easily change sorting precision to the best quality;
* Except for some traditional functions like double-face sorting and second-time sorting, it also has more intelligent functions, which simplify operation and handle.

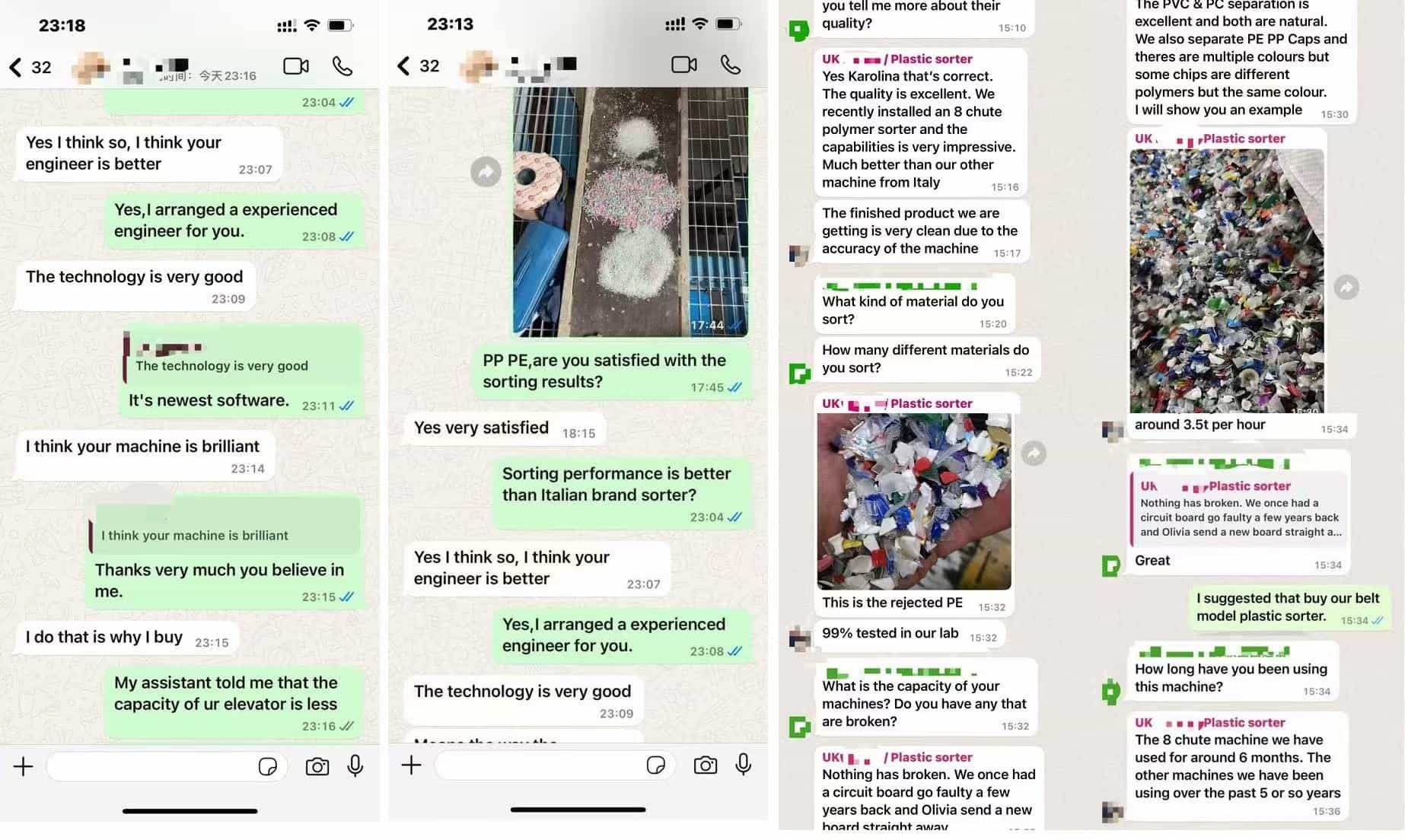

Customer feedback is the driving force behind our progress:

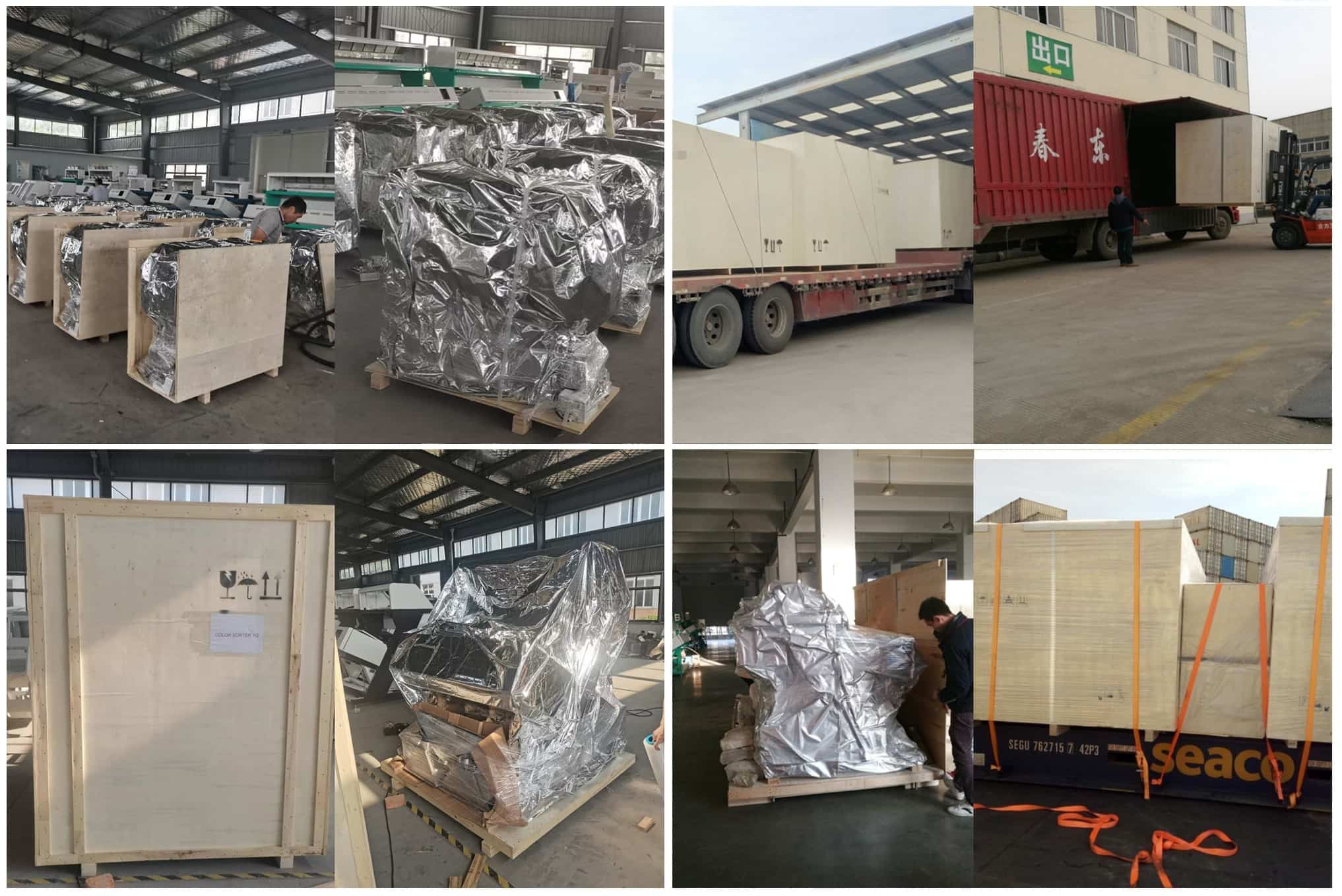

Plywood Case is Suitable for Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
Plastic color sorter can sort discoloured flakes,flakes with stickers,non-transparent materials,metals and other foreign materials from good one .
Separating different materials plastics and different colors plastics in the plastics recycling industry.Color and materials sorting ,all- in- one machine.
It is specifically designed to sort plastic particles and remove plastic pellets with small black spots (less than 1mm), different colors, shapes, etc. From transparent, opaque and colored original pellets,maximizing material purification and minimizing waste.
Plastic bottle color sorter machine ,suitable for sorting washed, unwashed, labeled, unlabeled round bottles, mixed plastic bottles in bale form, loose plastic bottles and other bottles of various shapes.The Pro series plastic bottle sorting machine integrates hyperspectral recognition technology and AI deep learning technology to accurately identify the material, color, and characteristics of plastic bottles. It effortlessly captures subtle spectral differences on the surface of plastic bottles, accurately distinguishing different materials and colors.
As concerns over environmental sustainability continue to grow, the recycling of plastic materials is becoming increasingly important. One of the most commonly recycled plastics is polyethylene terephthalate (PET), which is commonly used in the production of water bottles, soft drink bottles, and other consumer products.
As the world's population grows, so does our consumption of plastics. Unfortunately, not all plastic waste is properly recycled, leading to environmental pollution and health risks. As a solution to this problem, our company has developed a state-of-the-art car shredding plastic color sorter that can efficiently sort recycled plastic by color, making it easier for manufacturers to produce high-quality plastic products. In this article, we'll discuss the performance and advantages of our color sorter and how it can benefit your business.
Near-infrared (NIR) polymer color sorters are advanced sorting machines that use near-infrared light to detect and separate polymer particles based on their color and chemical composition. These machines are an essential component of the polymer processing industry, providing accurate and efficient sorting capabilities. In this article, we will discuss the performance and advantages of NIR polymer color sorters that make them an attractive investment for international wholesalers, distributors, and importers.
Polymer color sorters are advanced sorting machines that are widely used in the polymer and plastic recycling industries. These machines are designed to separate and sort polymer materials based on color, shape, and size. With the increasing demand for high-quality recycled polymers, the use of color sorters has become a critical aspect of the recycling process.
