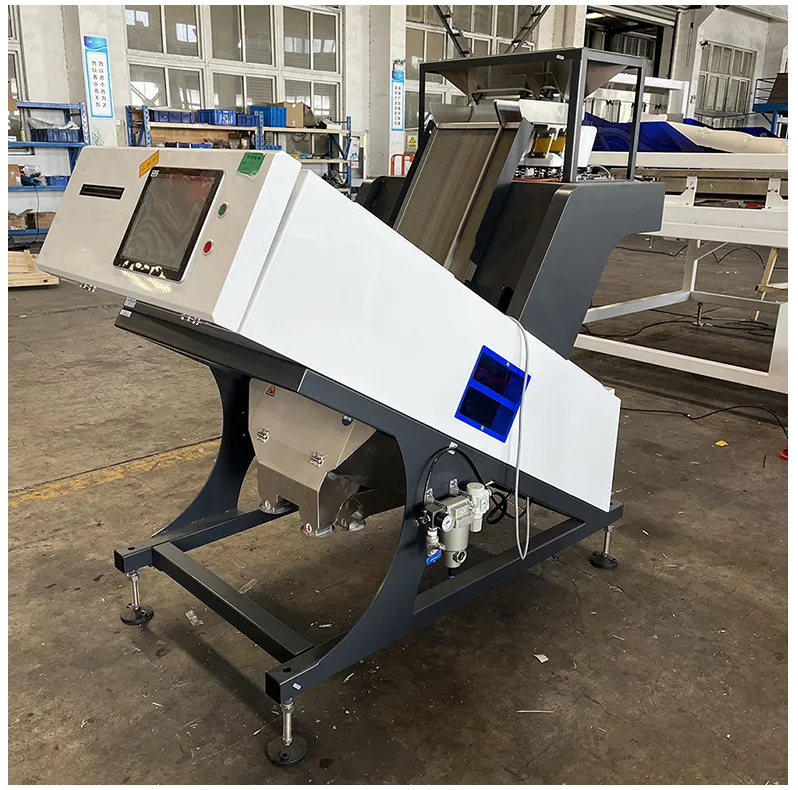

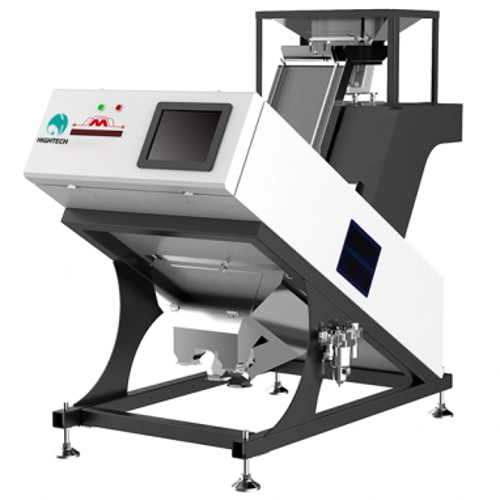

Grain Colour Sorter Machine / Color Sorting Equipment / Optical Color Sorter
Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time：
Within 7-20 daysProduct Name:
Grain colour sorter machineWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:
CEImproving Grain Quality with Color Sorting Machines
Introduction: Grain sorting is a crucial step in the agricultural industry to ensure the quality of the final product. Poor quality grains can reduce the overall value of the harvest and even cause health risks. However, traditional manual sorting methods are inefficient and time-consuming. That's where grain color sorting machines come in. These machines utilize advanced imaging technology to sort grains based on their color, shape, and texture. In this article, we'll explore how grain color sorting machines work and the advantages they offer for grain processing.

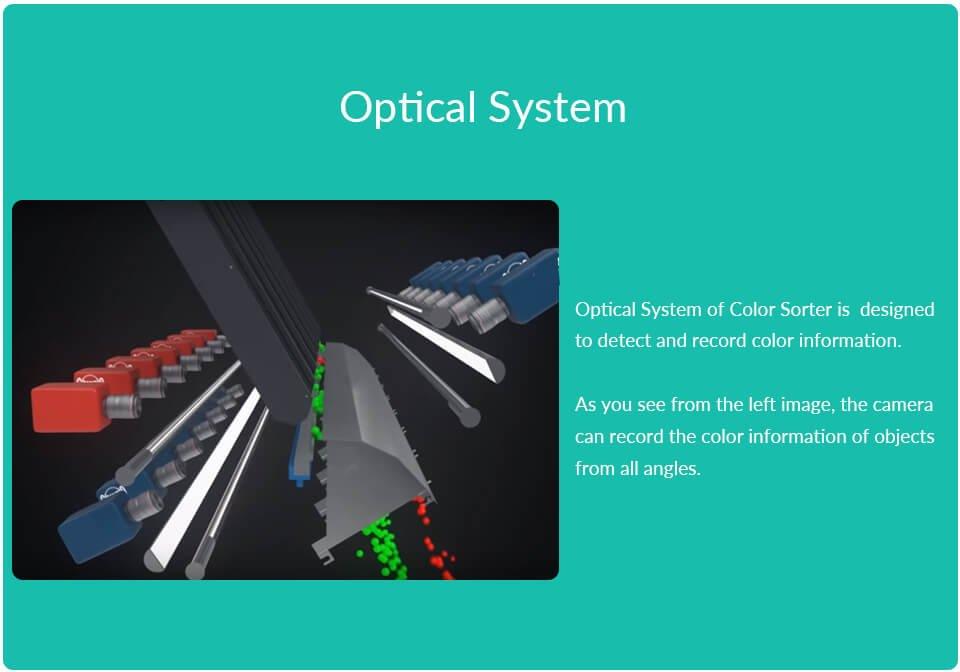

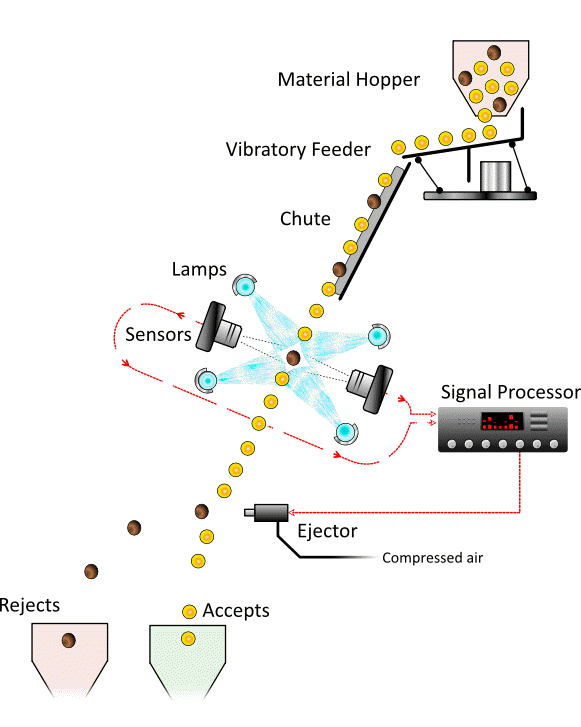

How Grain Color Sorting Machines Work: Grain color sorting machines use high-speed cameras and advanced software algorithms to capture images of each individual grain as it passes through the sorting process. The software analyzes the images and identifies any defects or impurities, such as broken kernels, discolored grains, and foreign material.
Once identified, the machine separates the defective grains from the good ones using a series of air jets or mechanical arms. This results in a batch of high-quality, uniformly colored grains that are ready for further processing or packaging.
Advantages:
1.Improved Quality: Grain color sorting machines can identify and remove defective or impure grains, resulting in a higher quality batch of grains that are more desirable to buyers.
2.Increased Efficiency: Sorting grains by hand can be a time-consuming and labor-intensive process
Products Features
1) The min. identify can be up to 0.04 mm2 ,
makes color sorting reach a new high level, meets demand of accurate sorting.
2) Advanced and Reasonable optics design guarantees accurate sorting.
3) Double sorting process guarantees final ideal sorting result.
4) Reasonable channel assigns suitable for sorting grain with various size.
5) Advanced production equipments from Germany and strict management under ISO9001:2008 guarantees machines' precision.
6) Great Data transferring Bandwidth guarantees the data transferred rapidly, makes machine perform consistently and stably.
7) Latest Patented technology of image processing algorithm upgrades the accuracy, and accelerates the operation speed.
8) Several sorting modes meet various requirements.
9) Advanced system design with China Patent guarantees machine run stably for a long time.
10) Concise touch panel from Japan helps customer operate easily.

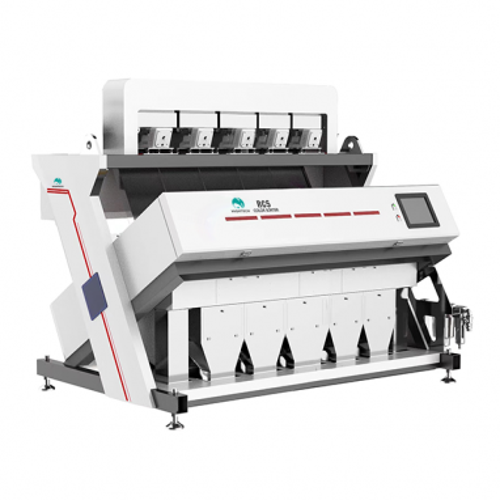

Parameter Table
| Model | Z1-64 | Z2-128 | Z2-192 | Z4-256 | Z5-320 | Z6-384 | Z7-448 | Z10-640 | Z12-768 |
| Type | 6SZM-64 | 6SZM-128 | 6SZM-192 | 6SZM-256 | 6SZM-320 | 6SZM-384 | 6SZM-448 | 6SZM-640 | 6SZM-768 |
| Output(t/h) | 0.5-1 | 1.5-4 | 3-6 | 5-10 | 6-10 | 7-12 | 8-15 | 13-24 | 18-30 |
| Sorting Accuarcy(％) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| Optimized Carryover (Bad:Good) | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 | ≥20:1 |
| Weight (kg) | 400 | 600 | 700 | 800 | 900 | 1000 | 1100 | 1400 | 1600 |
| Resolution(mm2) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 |
| Power(kw) | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 4.5 | 6.0 | 8.0 |
| Dimensions (LxWxH)(mm) | 1070*1650 x2010 |
1370x1650 x2010 |
1684x1650 x2010 |
1998x1650 x2010 |
2312x1650 x2010 |
2626x1650 x2010 |
2930x1650 x2010 |
4100x1650 x2010 |
2670x3000 x2010 |
| Power Supply(V/Hz) | 220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
220/50 (110/60) |
1. The above data is based on the 2% contamination, and real output depends on the material and its contamination.
2. If products update, no further notice. Please refer to the real machine.

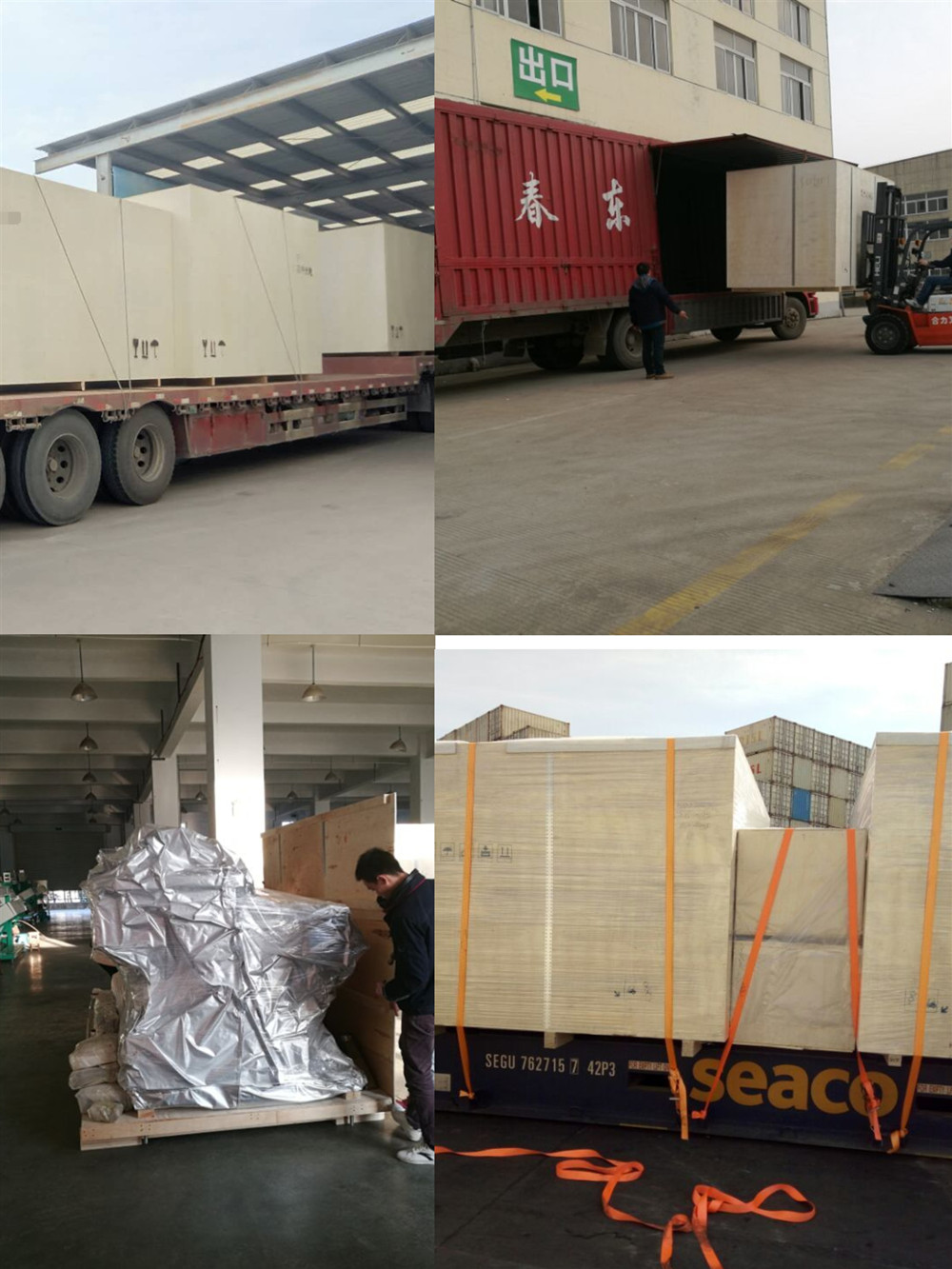

Packaging & Shipping
Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.
Delivery Time: 10- 20 Days after order confirmed.
Payment Terms: TT, Letter of Credit.
Commissioning and Installation
1. On Site Installation and Training Service by our professional engineer ;
2. Study and Learn the Machine Operation in Our Factory.
3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.
More information about color sorter
Separate Materials By Color
Color sorters are intensively effective in sorting materials of different colors. Rice, grains, millets, and cereals are examples you might need to sort based on colors.
Separate Materials By Sizes
It is prevalent to sort foods by size. In general, a color sorter can sort products by sizes of 0.1mm to 100mm.
Separate Materials By Shapes
Sorting by shape is very useful to classify food like tea leaves and seafood. You can set the parameters you want and let the machine do the work.
Separate Materials By Types
In some cases, you might need to sort materials like nuts, seeds, and beans by type. To classify them efficiently and pick only the healthy ones.

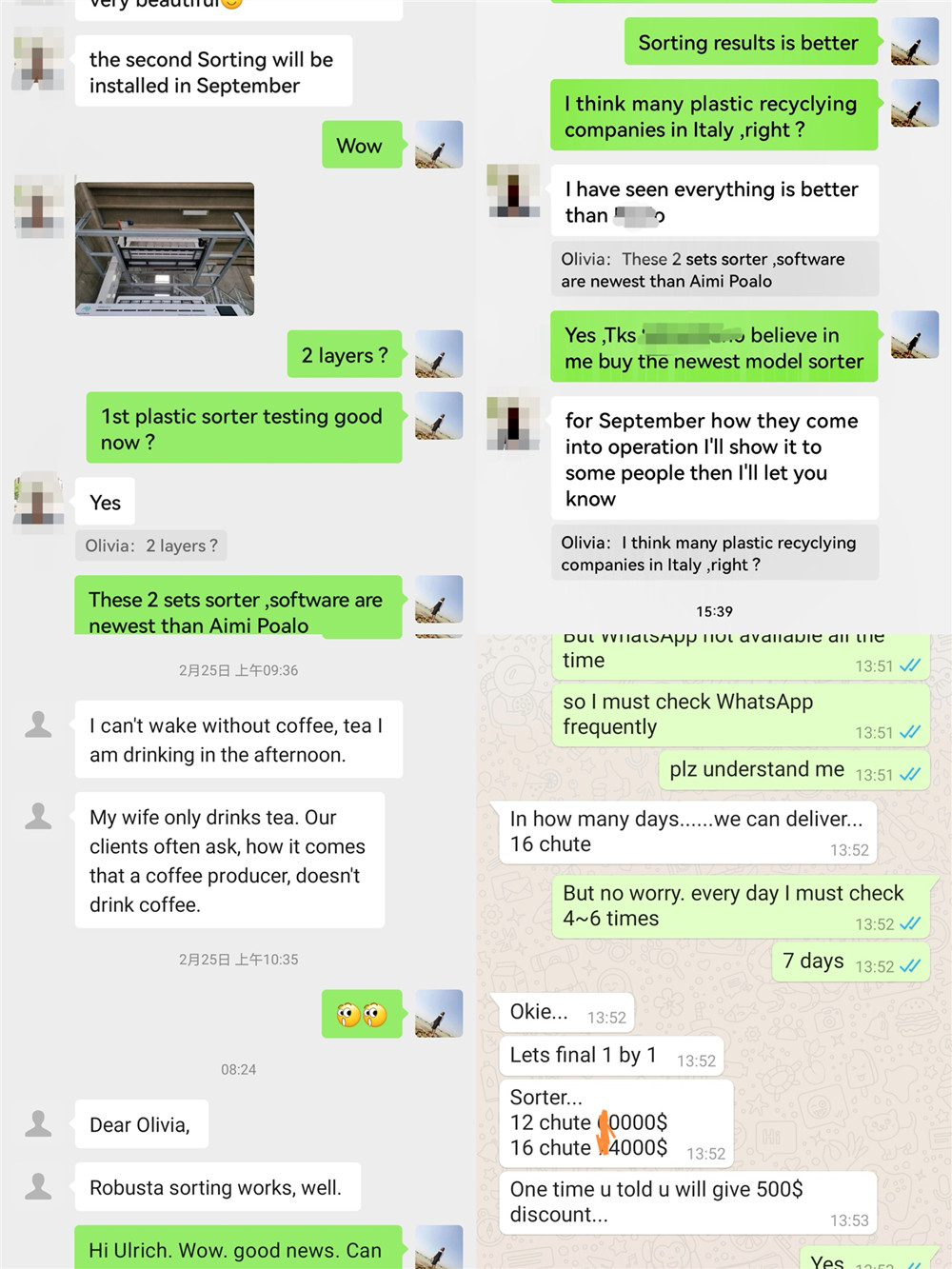

Customer Feedback Is The Driving Force Behind Our Progress:
Plywood Case Is Suitable For Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
We have many installation cases and working videos.Please contact us freely if you need.

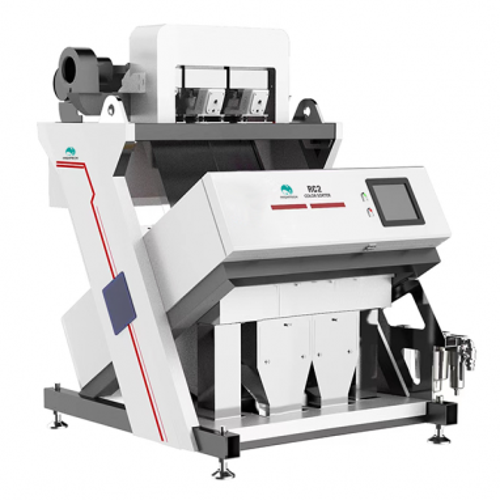

HT grain optical color sorting machine can separetes the discolored product from good products which have a been already pre-cleaned. Qualitiy of screened product increases to 99.9%. HT grain color sorting machine constructed with latest technology available.

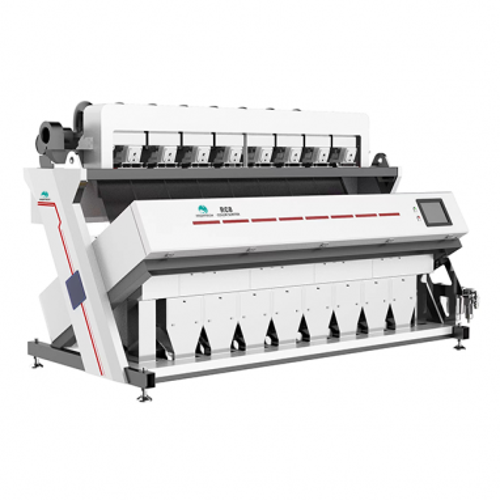

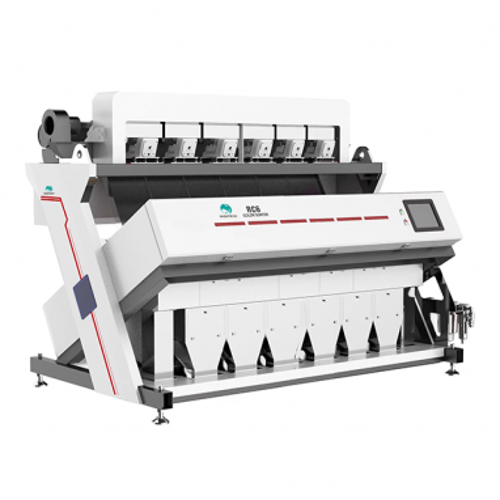

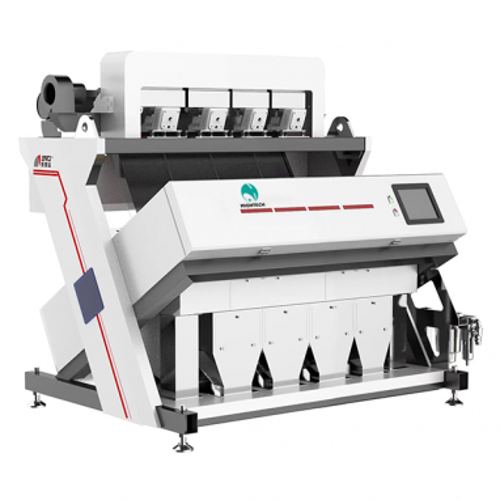

RGB Multifunction Color sorter machine ,Lentils Color Sorter /Nuts Color Sorter/Seeds Color Sorter/Wheat Color Sorter/Maize Color Sorter/Coffee Beans Color Sorter/Mung Beans Color Sorter/Dal Chana Chickpea Color Sorter/Peanuts Color Sorter/Cereal Color Sorter/Dehydrated Vegetables Color Sorter/Dried Seafood Color Sorter/Ore Color Sorter/Tea Color Sorter /Plastic Color Sorter
Glass color sorting machine can sort glass,metal etc by different colors .Glass recycling is an essential part of sustainable waste management. It reduces the amount of waste sent to landfills and conserves natural resources by reducing the need for new raw materials. However, recycling glass can be a challenging process, as it requires the separation of glass particles by color and quality. Fortunately, glass color sorting machine solutions are revolutionizing the recycling industry, making the process easier and more efficient than ever before. In this article, we'll discuss how glass color sorting machines work and the advantages they offer for glass recycling.
A chamomile color sorter is a specialized machine designed for the sorting and grading of chamomile flowers based on their color. Chamomile flowers are used for a wide range of purposes, including herbal teas, aromatherapy, and natural remedies, and the quality of the chamomile flowers is a critical factor in determining their value.
Corn color sorting machine can separate black,broken ,mildew and other impurities corn from good one .It's a advanced sorter that uses CCD optical imaging technology to screen heterochromatic particles and impurities in maize.Our maize color sorters are available from single-chute mini color sorters to 12-chutes color sorters to meet the needs of different clients.
Newest soybean color sorter can sort all kinds of beans like soybeans,lentils,dal ,peanuts,beans etc by different colors and different shape .Soybeans are a valuable crop that is used in a variety of products, including food, animal feed, and industrial applications. However, their quality can be affected by a variety of factors, including disease, weather, and storage conditions. To ensure the highest quality soybeans, many processing operations use soybean color sorting machines. These machines use advanced imaging technology to sort soybeans based on their color and quality, resulting in a higher-quality product that is more desirable to buyers. In this article, we'll discuss how soybean color sorting machines work and the advantages they offer for soybean processing.
Maize colour sorter can sort the black and moldy,diseased seed ears ,husks, foreign materials,rogues, mold rejection out. After sorting ,you will get 99.99% pure maize as accepted maize for safe food production.It can be sorted by different colors ,shapes ,sizes etc.Corn color sorter capacity from 500kgs / h to 20 tons per hour ,no matter you are a small farmer or big factory we can meet your demands .
What is a Maize (Corn) Color Sorter? A maize color sorter, also known as a corn color sorter, is an advanced machine designed to sort grains based on color and shape / size differences.It can separate waxy corn,frozen corn, corn seed or other grain seeds. Utilizing high-resolution cameras and optical sensors, the machine analyzes individual kernels of maize, identifying those that meet predefined color standards and removing those that don’t. The rejected kernels may be discolored due to factors like damage, mold, or immaturity, all of which can affect the quality of the final product.
