Payment:
T/T,L/CProduct Origin:
Hefei,ChinaShipping Port:
Shanghai / NingboLead Time：
Within 7-20 daysProduct Name:
Rice color sorterWarranty:
2 yearsMachine Function:
Color/material/shape/size sortingCertificate:

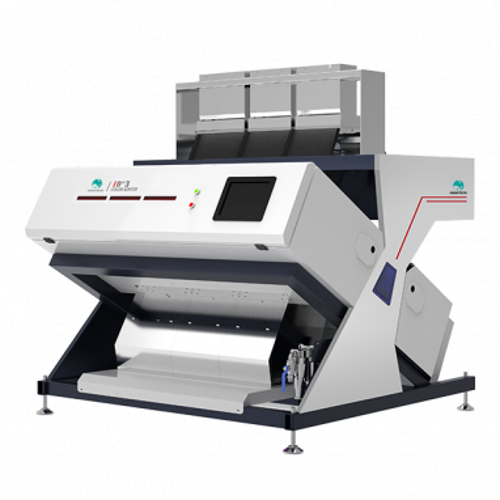

CEAI Smart Rice Color Sorter Introduction

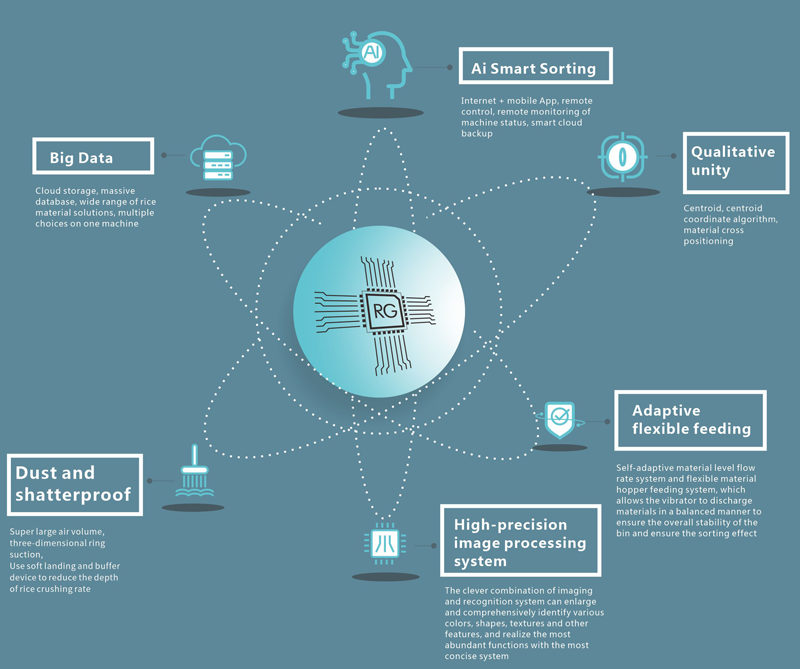

Core Power
Fifth generation FPGA smart chip
Chip storage capacity increased by 100%
Chip computing unit increased by 40%
40%reductionin chip power consumption
Quality by core
Intelligent quality control
Realtime automatic capture and
analysis of raw grain
Consistent results
Smart Core
Balanced system design,optimalintegrationof hardware and software Realtime selfinspetion Seff protection,low falure and stable operation Extendedlife of componentsand complete machine
Delivery core
Industry mainstreamchips,commurnicationmodules
2020iteration new productstake thelead One step ahead,the future isexpected Reserved port,unlimited potential, utra-highvaluepreservation
Big Data
Cloud storage,massive database,wide range of ricematerial solutions,multiple choices on one machine
Ai Smart Sorting
Internet+mobile App,remote control,remote monitoring of machine status,smart cloud backup
Qualitative unity
Centroidcentroid coordinate algorithm, material cross positioning
Dust and shatterproof
Super large air volume, three-dimensional ring suction, Use soft landing and buffer device to reduce the depth of rice crushing rate
High-precision image processing system
The clever combination of imaging and recognition system can enlarge and comprehensively identify various colors,shapes,textures and other features,and realize the most abundant functions with the most concise system
Adaptive flexible feeding
Self-adaptive material level flowrate system and flexible material hopper feeding system,which allows the vibrator to discharge materials in a balanced manner to ensure the overall stability of the bin and ensure the sorting effect
|
Model |
Output ( T/h ) |
Carryover rate (bad:good) |
Accuracy(%) |
Voltage |
Power(KW) |
Weight(Kg) |
Dimension(mm) |
|
AIS5-64X |
3-8 |
100:1 |
>99.95% |
220/50 |
3.2-4.0 |
1280 |
2201×1616×2000 |
|
AIS6-64X |
4.5-9 |
100:1 |
>99.95% |
220/50 |
4.2-4.6 |
1490 |
2516×1616×2000 |
|
AIS7-64X |
5-10 |
100:1 |
>99.95% |
220/50 |
4.8-5.5 |
1680 |
2831×1616×2000 |
|
AIS8-64X |
6-12 |
100:1 |
>99.95% |
220/50 |
5.6-6.0 |
1860 |
3146×1616×2000 |
|
AIS10-64X |
7-16 |
100:1 |
>99.95% |
220/50 |
6.5-7.5 |
2180 |
3776×1616×2000 |
|
AIS12-64X |
9-12 |
100:1 |
>99.95% |
220/50 |
7.8-8.5 |
2620 |
4406×1616×2000 |
The main specifications and parameters of the AI Smart Rice Color Sorter generation AIS series intelligent rice color sorting machine are as follows (take the rice containing 0.5% contanimation as an example, the specific indicators will change due to different rice types and impurities).
Advantages of newest model rice color sorter machine
Inheriting 20 years of professional quality accumulation in HT 13 core technologies are blessed, stronger applicability, and more durable.
One machine has multiple sorting models, which can easily control the sorting needs of different colors, yellow, whites and other process points, and perfectly create cost-effective sorting of popular items.
It is your quality choice!
Inheriting the excellent characteristics of RG products, the intelligent technology continues to evolve, the uniform feeding technology, intelligent early warning technology and other comprehensive upgrades, while more intelligent, the sorting and protection algorithm is continuously optimized, the sorting of yellow and white is more accurate, the finished product is better,and the by-products are more valuable. Intelligent evolution,excellent choice!
In response to the design needs of the process points of crushing，mutual mixing and sorting,and miscellaneous impurities sorting, RG+ product innovation adopts HT S-class professional identification system to integrate composite infrared spectrum, iteratively presents dual spectrum + dual composite technology, and opens up "color +shape+ Material" Three-dimensional integration era; realize multi-dimensional and multi-feature identification such as color, shape, texture,size, area, weight, soft and hard, and continuously optimize the sorting effect, bringing excellent user experience. Keep improving, iterative choice!
Intelligent Image Recognition
Hundreds of professional identification algorithms, integrated with
the third-generation multispectral confocal technology,realize multi-dimensional and multi-feature learning such as color,
shape, texture, area, weight, soft and hard, etc.
Continuous perception, improvement, and data iteration, the road is
simple, and the recognition is infinite;
Ai Smart Sorting
One- click smart selection, smart simulation technology,
real-time dynamic online tracking,bring the ultimate operating experience;
Cloud Think Tank
HT invested to build an open mass sorting application database,
Cloud interactive storage, a wide range of material solutions arel
exclusively created for you,share the convenience and value of the big data era with users.
Intelligent Care System
Feeding protection + soft landing buffer design, detail protection, sincerely for you;
Balanced Feeding
Intelligent analysis adaptive material level flow rate system,balance the flow of the production line to ensure the best sorting effect, better production capacity, and unattended;
Intellectual Defense Guard
Multiple intelligent early warning protection,no worries about equipment operation, unlimited distance,serve us everywhere;
Super Alloy High Frequency Solenoid Valve
National patent, high frequency and low air consumption,wear-resistant and high-temperature superalloy, matching for lifetime;
Breathable Bionic Wind Net System
Engineering bionic design, intelligent breathing air network system, multi-directional separation design, non-stop cleaning,more thorough cleaning;
Powerful Chips
HT Smart DGS chip and ARM work together, dual-core + dual intelligent engine, the operation efficiency is geometrically improved, higher speed, more efficient and smarter, to meet the user's requirements for different material characteristics,impurities, and quality standards changes, HT dedicate a shocking sorting experience to the forward-looking.
All Things Connected
Real-time online HT cloud platform, remote interconnection, control, maintenance,early warning, upgrade, operation and maintenance data, intelligent online inspection etc , can easily have real-time services, your exclusive online nanny.

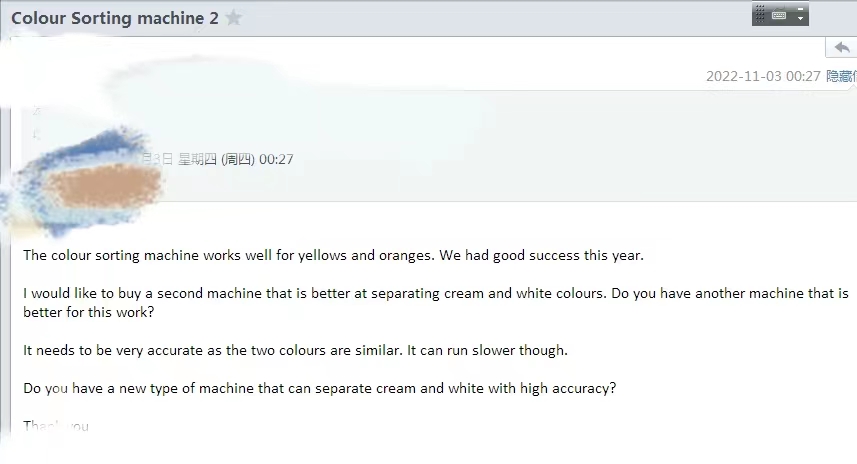

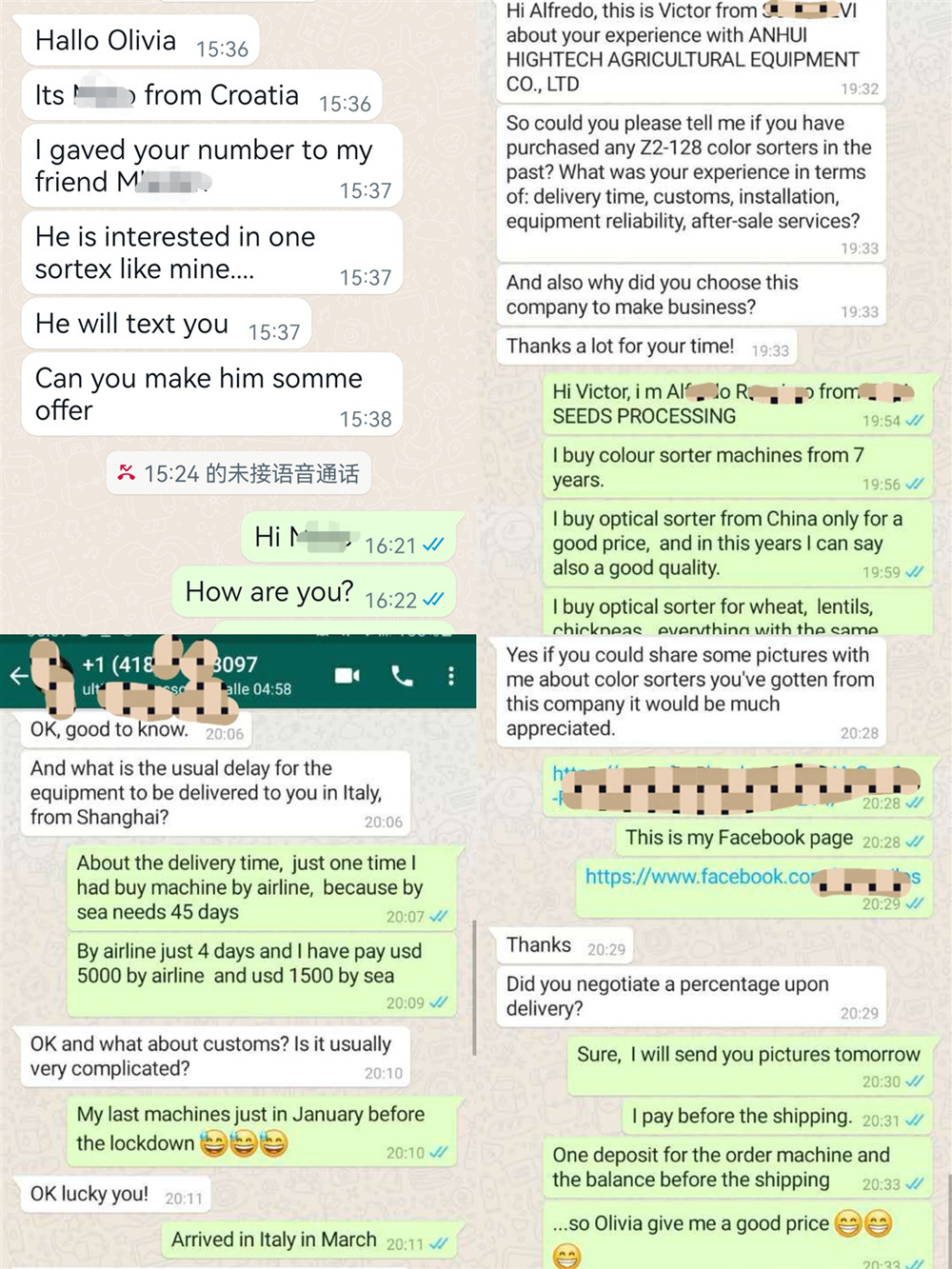

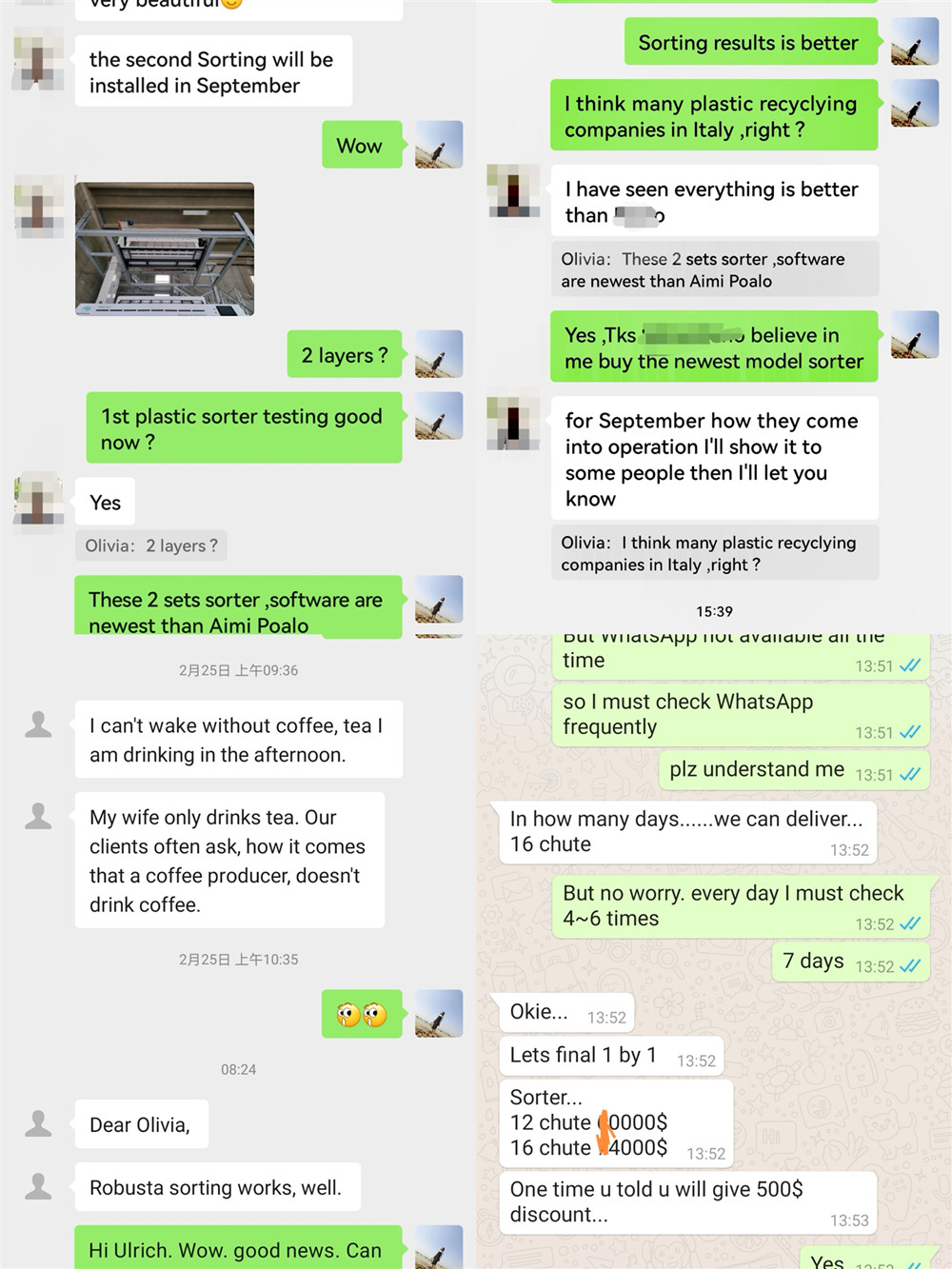

Customer Feedback Is The Driving Force Behind Our Progress:

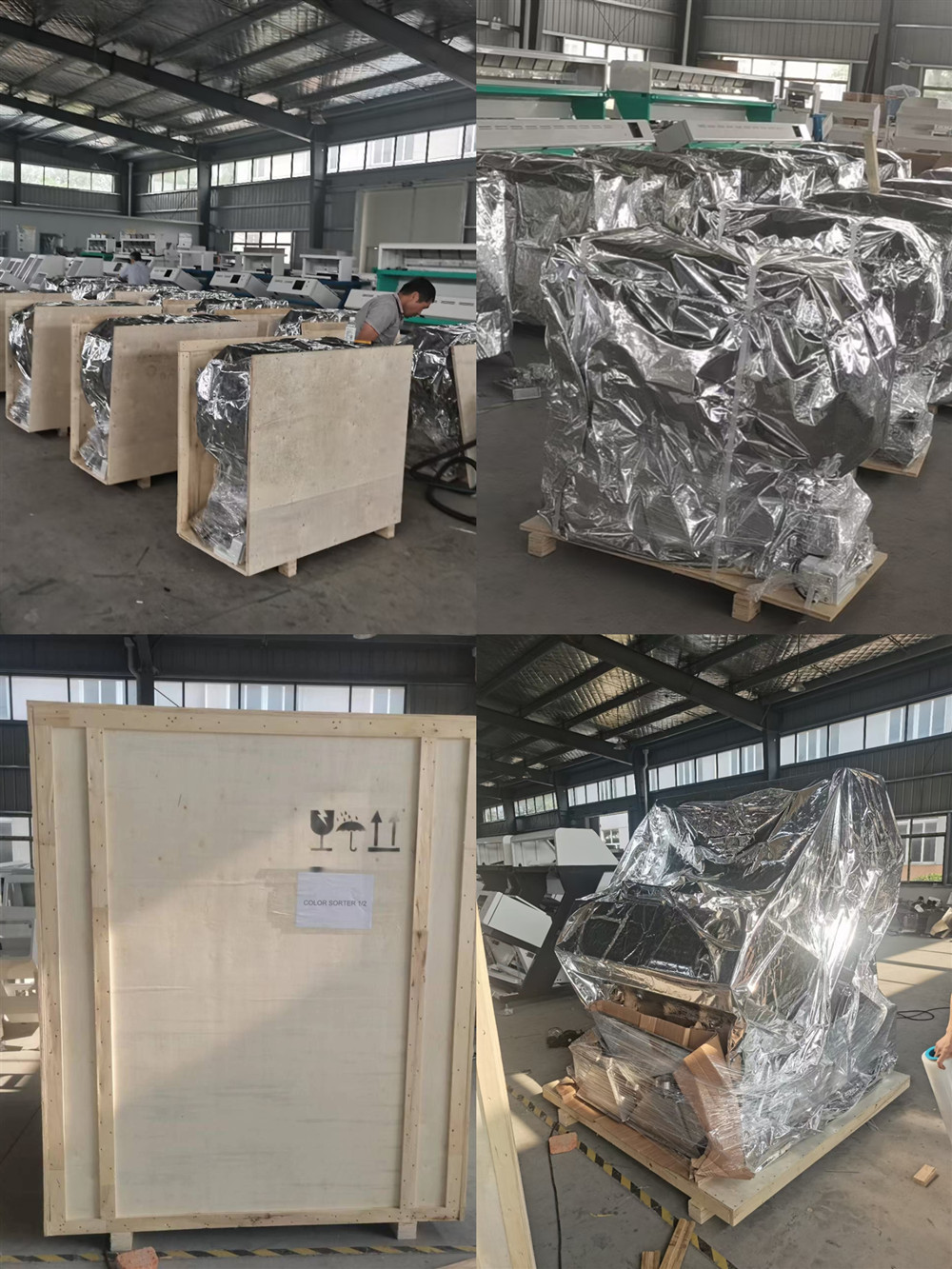

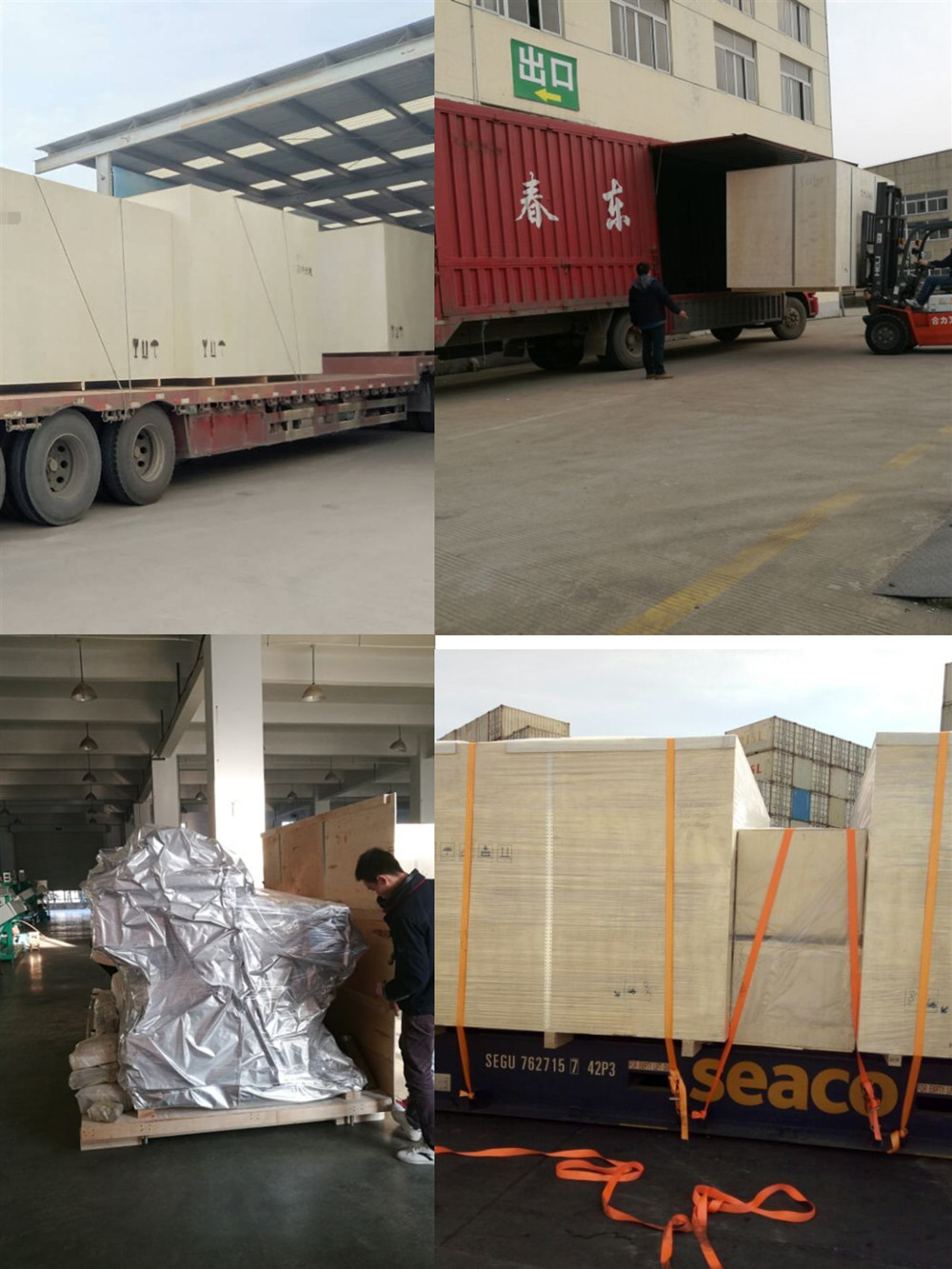

Plywood Case Is Suitable For Sea/Road/Air Transport:
1. How to use the machine?
We will supply the Installation instructions and videos for guiding you how to set color sorter.
2. How long about the guarantee period?
Two years. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor & air tank & air dryer & air filters.
4. Is oversea service available?
Yes, we will send engineer go abroad when you need it.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 engineer to guide for installation, then customer should to pay the cost, including transaction of engineer’s visa, transportation(air) for go abroad. and accommodation , local transportation and security when the engineer arrived.
6. If you have agent in our country?
We have agent in UK,New Zealand,Italy,Crotia,India, Guatemala,Finland,Malaysia,Bangladesh,Pakistan,Nigeria,Ukraine,Nicaragua etc. and we can provide after-sales service in your Country.
We have many installation cases and working videos.Please contact us freely if you need.
Rice color sorter machine : RGB CCD Optical Sorting Machine, 1-14 Chutes, 64-896 channels. From white rice we sort:yellow,red and green grains,chalky rice,discoloured and immature rice,black spotted grains with spot less than 0.25 mm,From parboiled rice we sort : black and burned grains,discoloured,black spotted and any others defective grains.We have steam rice sorting machine ,Double Boiled Rice Sorting Machine ,Raw Rice Sorting Machine ,Basmati Rice Sorting Machine ,Rose Rice Sorting Machine.
Rice is a staple food for millions of people around the world, and its quality is a critical factor for both farmers and consumers. However, traditional sorting methods for rice can be slow, inconsistent, and labor-intensive. That's where rice color sorting machines come in.
HT rice sorting offers a high accuracy and fast optical sorting solution to all types of rice. It can sort rice by different colors or different shapes ,like black / chalky /light yellow rice from good rice ; broken rice from good rice .It will greatly improve the quality of the rice .
A rice color sorting machine, also named rice colour sorter, separates rice grains according to color differences in raw rice arising from anomalies like bits of stone, bad rice, black rice, half-husked rice, etc. A high-resolution CCD optical sensor drives a mechanical sorter to separate different granular materials, automatically sorting heterochromatic particles out of the batch of raw rice; removing such impurities in this process improves the quality of the rice
How to improve the quality of parboiled rice and basmatic parboiled long-grain rice ? We have newest type of rice sortex to help you . It can sort chalky,bad,discoloured ,foreign materials one out from good rice.Normally apply for parboiled rice,round-grain rice,basmati rice ,white rice ,long-grain rice etc.
Mini rice color sorter can meet the needs of small production users.Small size can easy to install and move,low price with multi-function.Capacity from 100-300kgs per hour .
Small Rice Color Sorter which meet the needs of small production users.Small size can easy to install and move,low price with multi-function.
Multi purpose Mini Rice Color Sorter is mainly used in the agricultural production of various kinds of rice color separators, also widely used in fast food factories, edible oil factories, flour factories, etc. for the color separation, shape separation and size separation of beans, grains and nuts.At the same time also widely used in industrial production, sorting all kinds of plastics or all kinds of rocks.Mini Rice Color Sorter can be used:* For white rice sorting: yellow, red and green grains, chalky rice, dis-coloured and immature rice, black spotted spotted grains with spot less than 0.25 mm;* For parboiled rice sorting: black and burned grains, dis-coloured black spotted and any others defective grains.
